Spiral fin tube machine
Product Description
Bang win Thermal’s Spiral Fin Tube Machine adopts continuously variable transmission to control the tightness of the warp. Making the warp tightly wound on the light pipe without loosening.
| Main Unit Dimensions (Length × Width × Height) | 5500×900×1600mm |
| Spindle Speed | 113~565 rpm |
| Maximum Speed | 1.3m/min |
| Accuracy | 0.1mm |
| Fin Spacing | 2.3~6mm |
| Fin Height | 8~16mm |
| Fin Thickness | 0.4mm |
| Fin Material | Aluminum, Copper |
| Base Tube Outer Diameter | 19~38mm |
| Base Tube Wall Thickness | 2.0 and above |
| Base Tube Material | Carbon Steel, Stainless Steel |
| Spindle Variable Frequency Motor | 11KW (Kongte) |
| Trolley Variable Frequency Motor | 4KW (Kongte) |
| Cooling Pump Motor | 120W |
| PLC | Mitsubishi |
| Touch Screen | Weintek |
| Inverter | Fuji (FE) |
| Total Power | 17KW |
| Voltage | 3-phase 380V+N+PE |

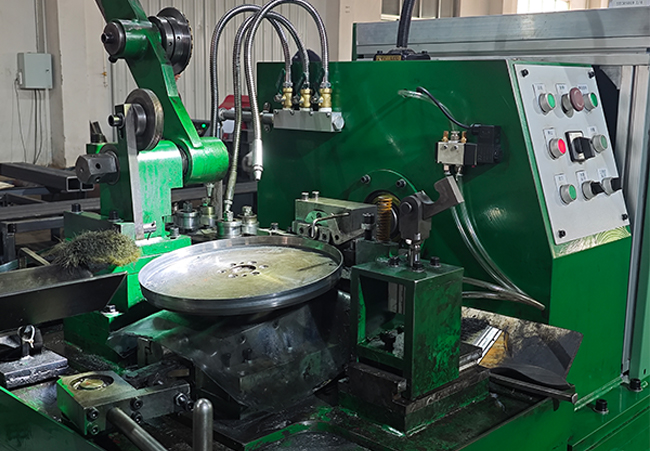

What is Spiral fin tube machine?
The equipment adopts continuously variable transmission to control the tightness of the warp. Making the warp tightly wound on the light pipe without loosening.
Using the frequency conversion motor to adjust the fin pitch range (2.3~5mm). The fin pitch is uniform and the precision is higher. With screw driving and rolling drives the trolley to move around in circles.
For gearbox, we have self-developed positive and negative transmission power system.
Production fin tube type:
- Carbon steel pipe/stainless steel pipe/ copper pipe/warped pipe
- G type/L type/LL type/KL type/KLM type
- Copper and aluminum warp heat pipe

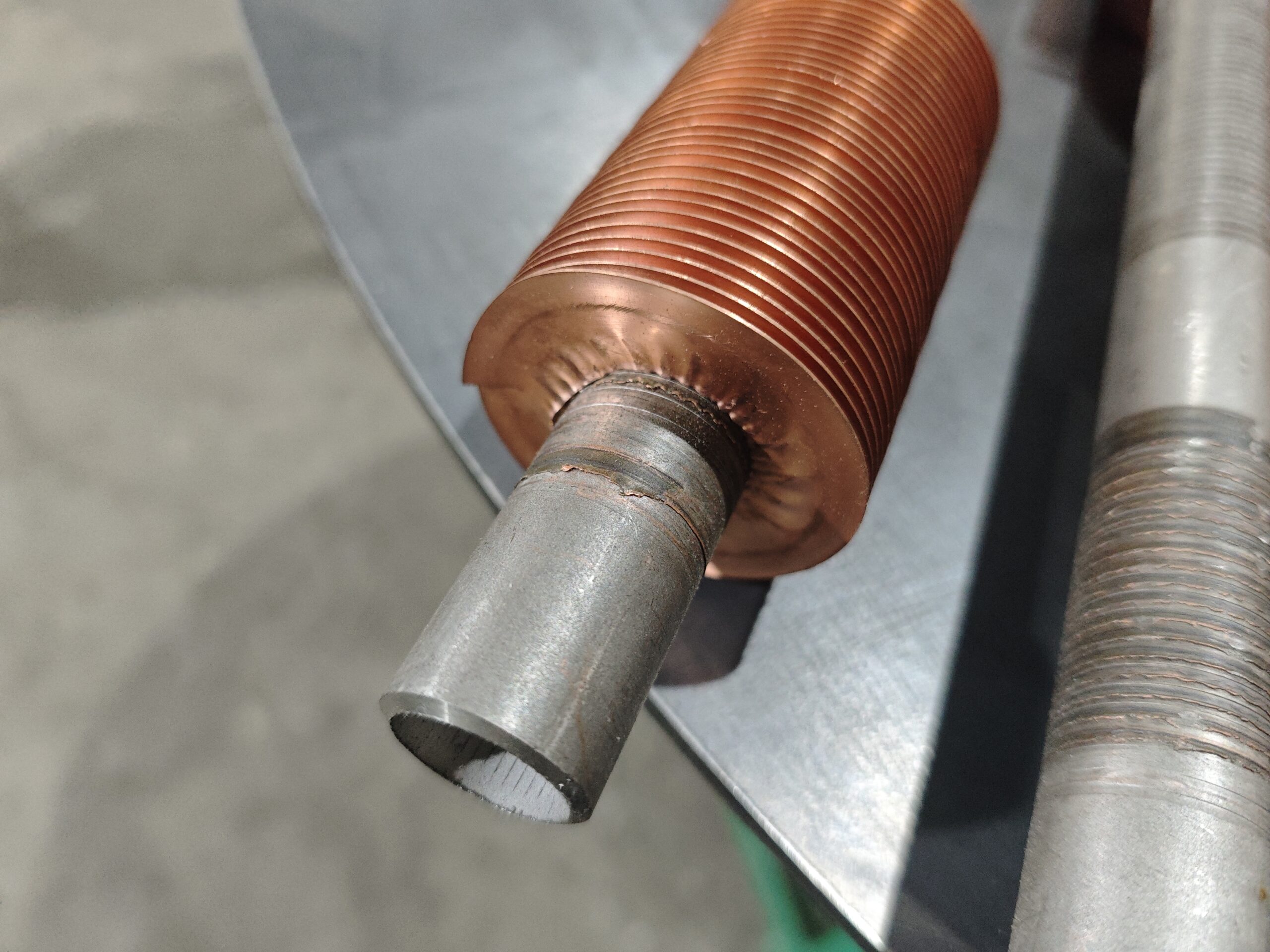

Finished Product Display
Product Showcase
Spiral fin tube machine
