G Fin Tube
Tube Material:Carbon steel tube;Stainless steel tube;Alloy tube;Copper tube
Tube OD:19-51mm
Tube Thk:1.65-3.0mm
Fin Material:Aluminum, Copper
Fin Thk:0.3-0.5mm
Fin Pitch:2.0-5.0mm
Fin Height:10-16mm

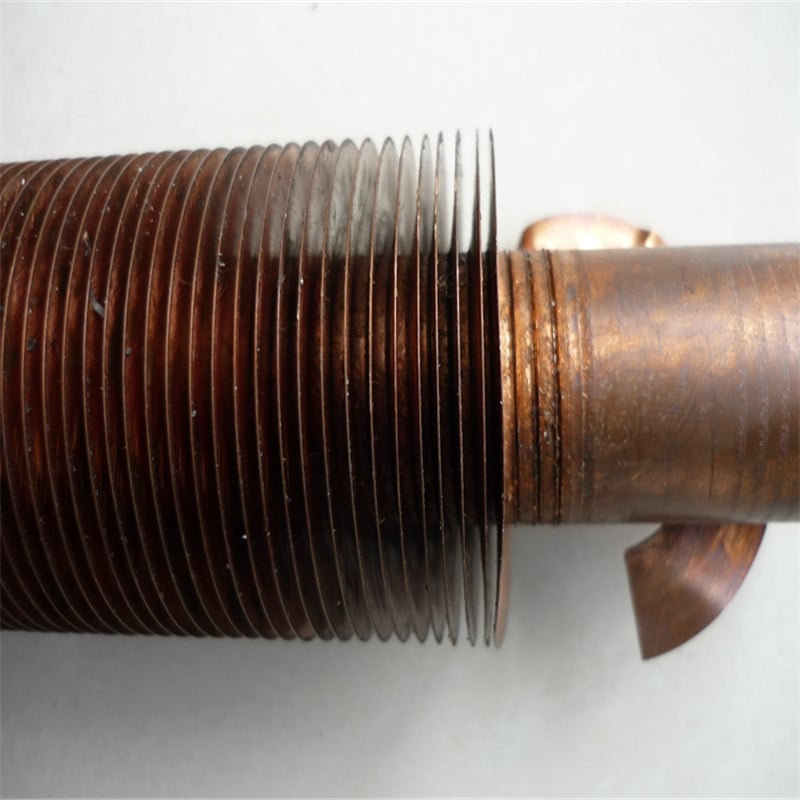

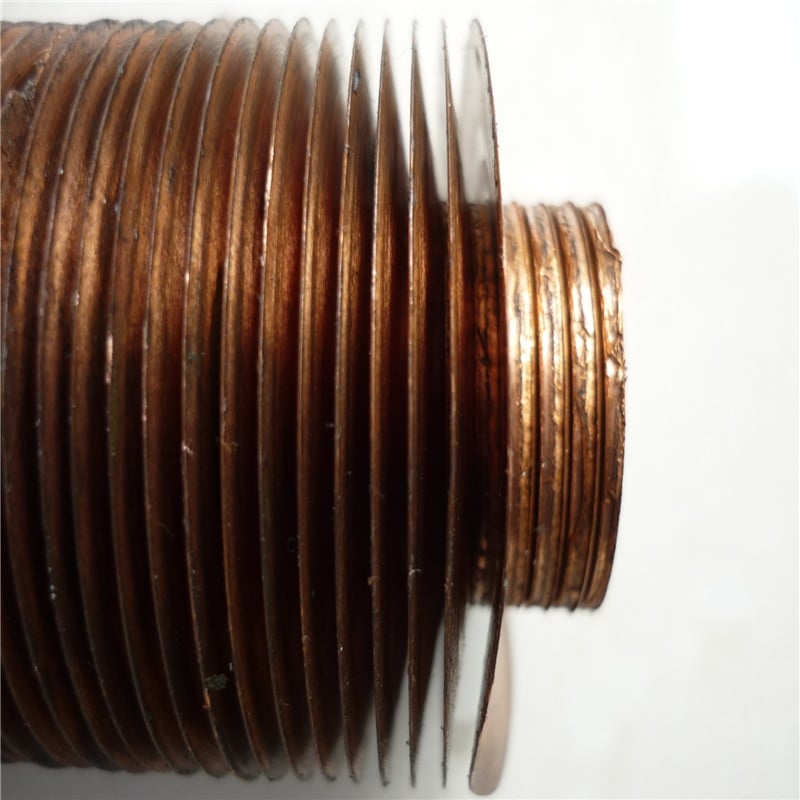

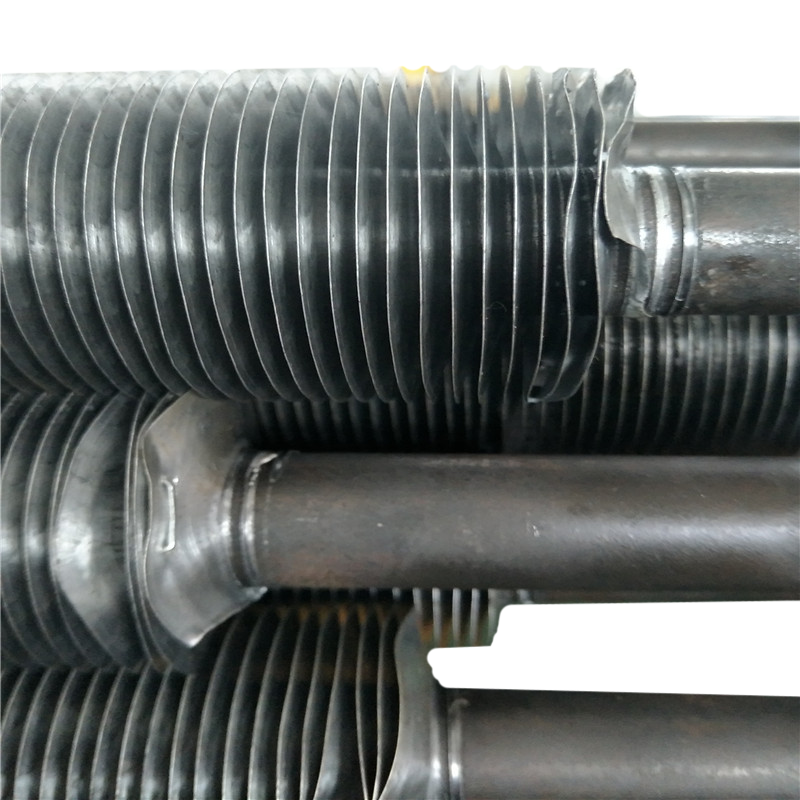

G Fin Tube
Product Description
Bangwin Thermal produce G Fin Tubes made to measure high standards of quality control. Using state of the art finning equipment. All tubes are checked dimensionally for correct fin bonding and structural strength. Customization is available on Tube Diameter, Fin Pitch and Material specification.
What is G Fin Tube?
G Fin Tube, also known as G-type finned tube, is a type of heat exchanger tube that features a G-shaped fin arrangement spiraled around the tube.
It provides a larger surface area for better heat transfer while maintaining strength and durability.
G Fin Tubes are commonly used in industrial heat exchangers, air coolers, boilers, condensers and HVAC systems due to their superior thermal performance, corrosion resistance and longevity.
