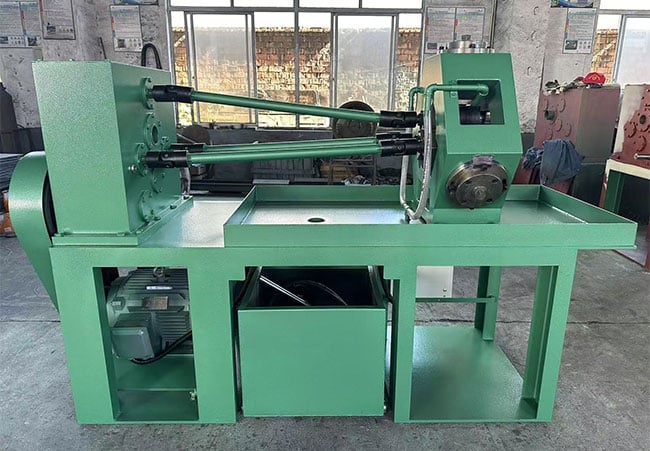

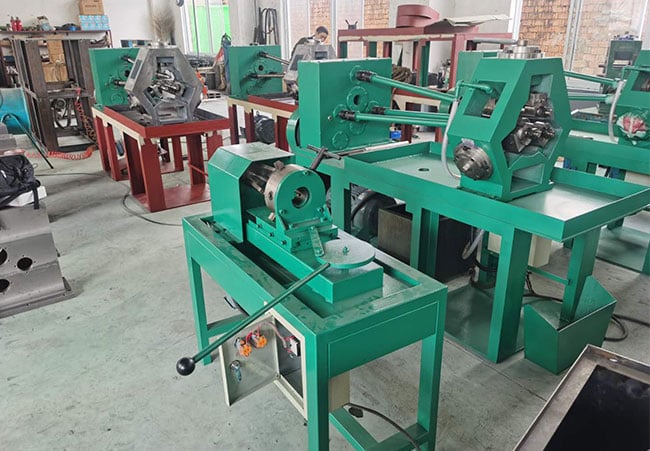

Extruded fin tube machine

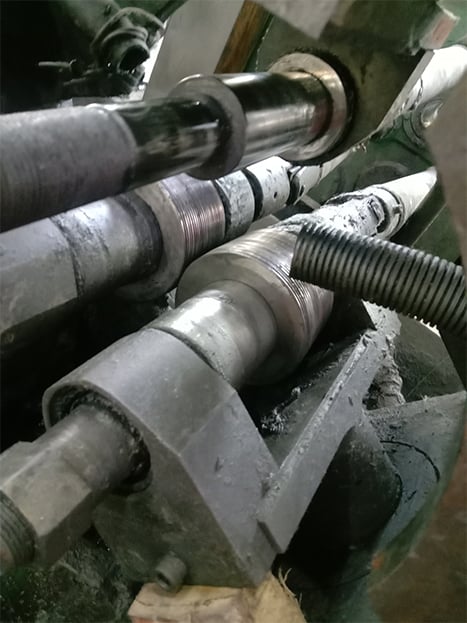

Tool holder and tool holder body adopt advanced dual-circular-key structure, big torque withstanding, accurate and reliable displacement.
Tool holder adopts split type design, convenient for blade debugging, cleaning & fixing.
Blade spindle bushing adopts special taper sliding bearings brings max. bushing utilization.
Universal joints and spindles are of spline linking; And coolant cooling tank is separate to main rolling machine.
Special extruding blade design, high efficient, long blade life.

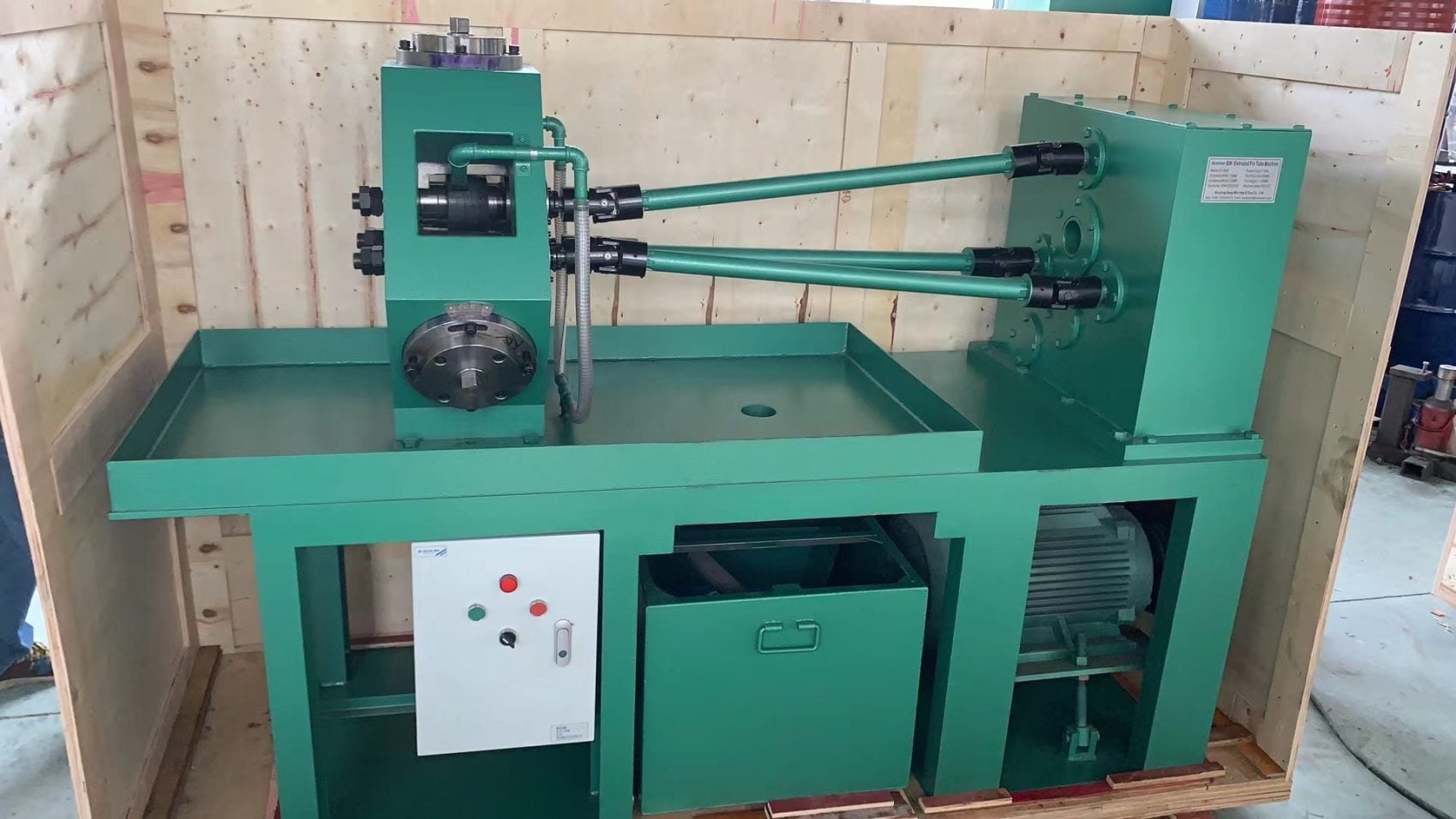

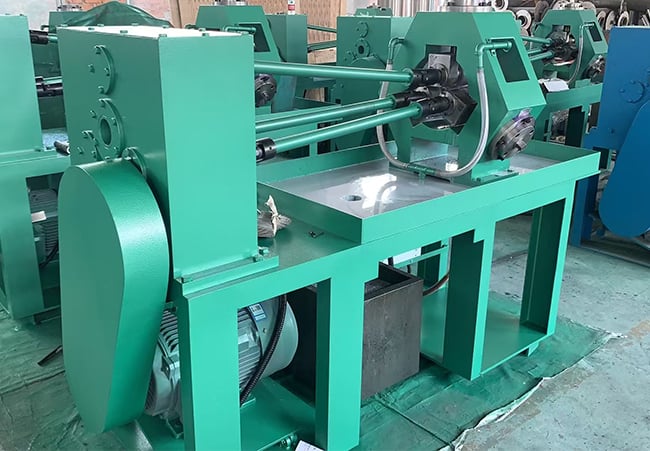

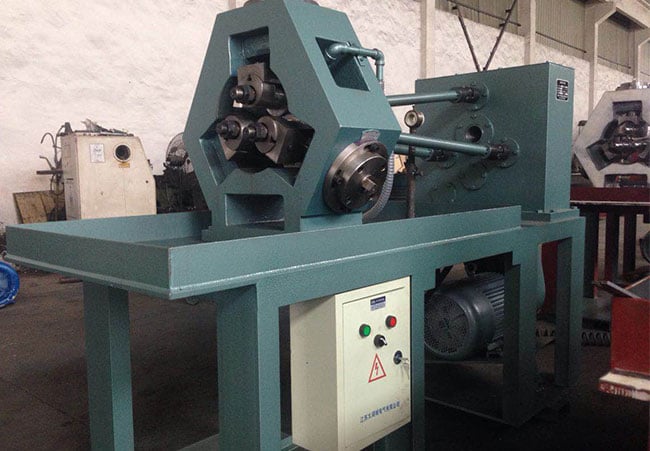

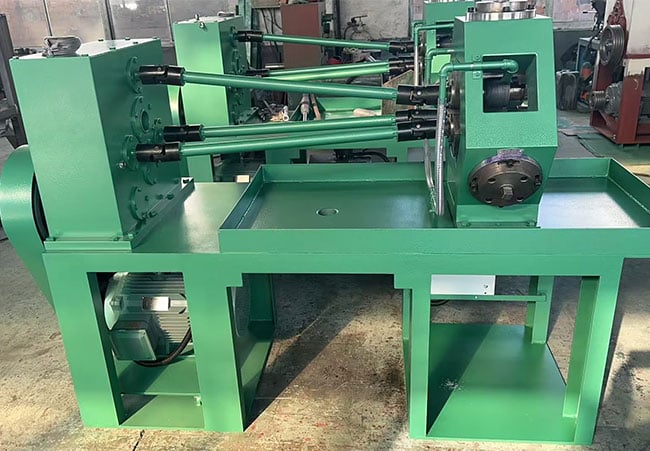

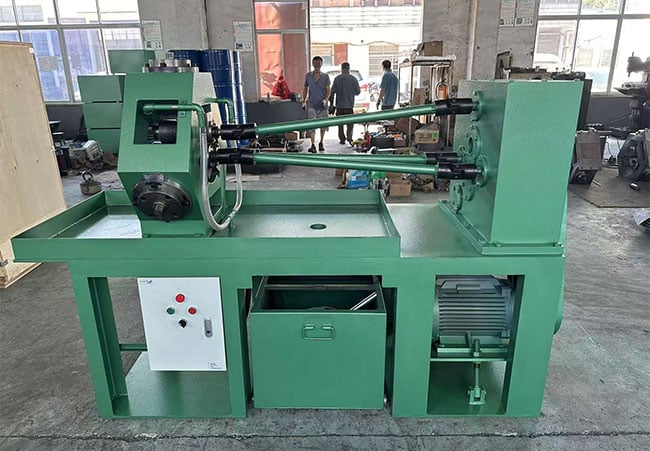

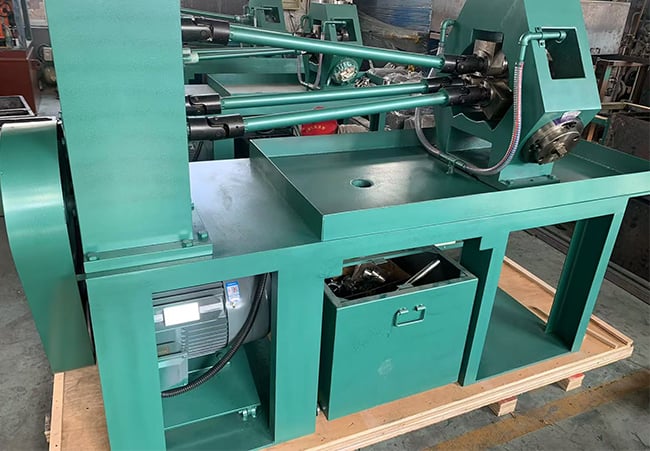

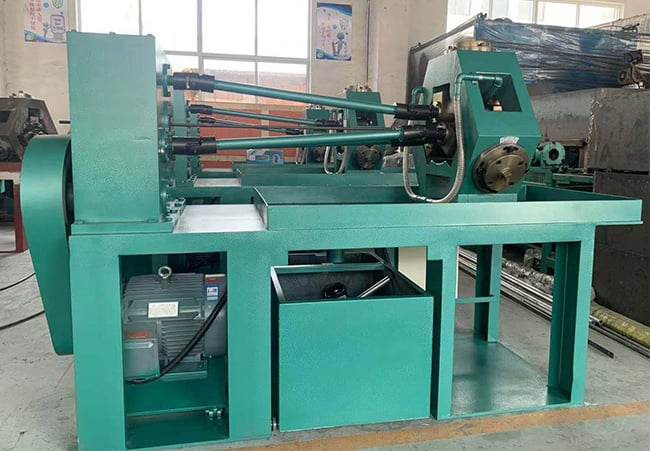

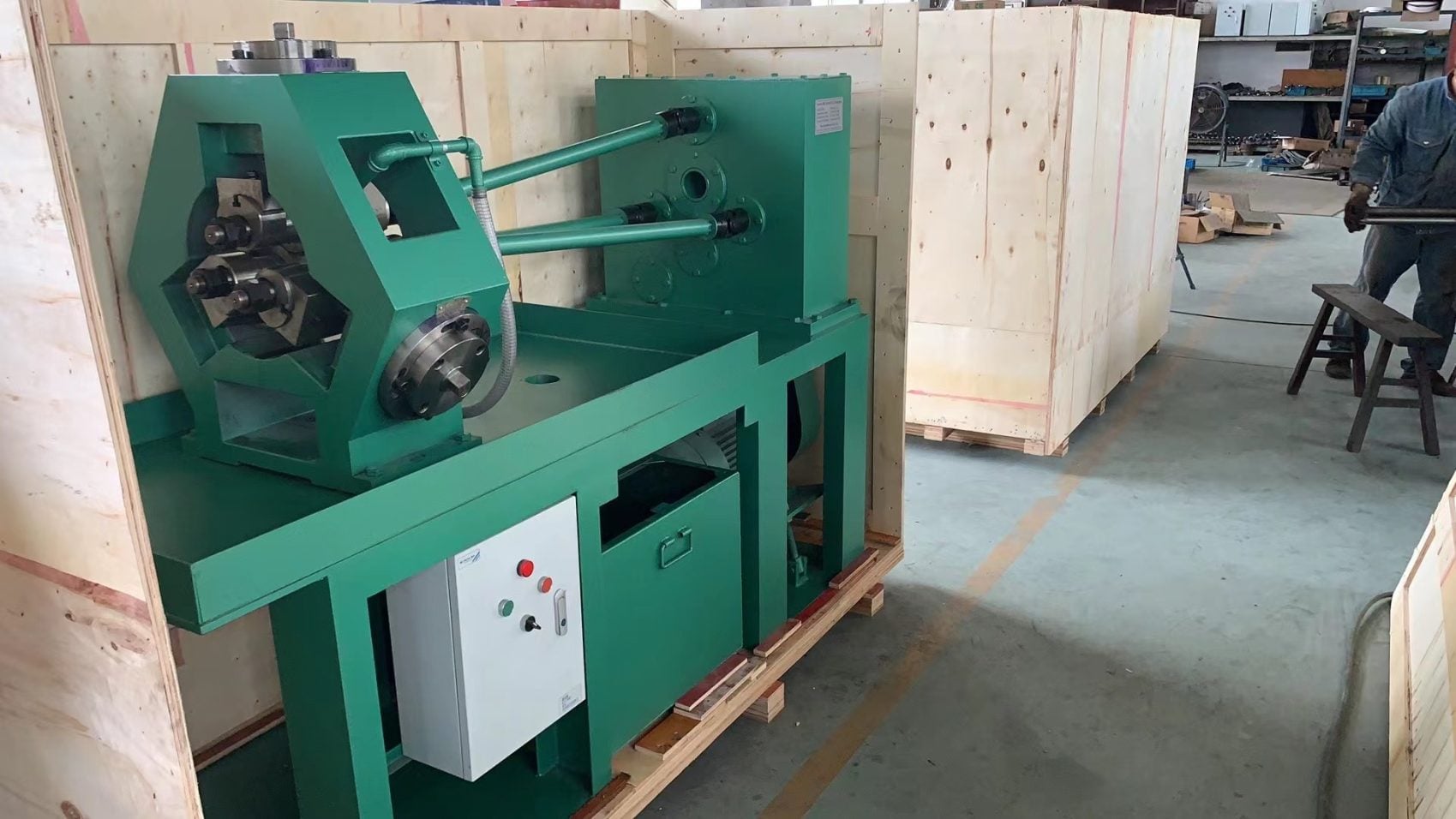

Extruded fin tube machine

Product Description

Bang win Thermal’s extruded finned tube machine is designed for the production of extruded fin tubes.Widely used in industries such as air conditioning, refrigeration, and heat exchangers where enhanced heat transfer efficiency is crucial. Extruded fin tubes find applications in air coolers, condensers, and other heat exchange systems.

What is Extruded fin tube machine?

Automatic Tube Fin Machine is a piece of industrial equipment designed to automate the process of attaching finned tubes to a base tube, creating a heat exchange surface. These machines are commonly used in various industries for applications that require efficient heat transfer, such as air conditioning, refrigeration, heat exchangers, and industrial heating and cooling systems.
The Bimetal Tube Finned Machine is a piece of equipment used in various industrial applications, particularly in the manufacturing of heat exchangers and air-cooling systems. This machine is designed to attach finned tubes to a base tube, creating a bimetallic structure. The purpose of this is to enhance the heat transfer capabilities of the tube, making it more efficient in transferring heat from one fluid to another, such as in refrigeration, HVAC systems, and various industrial processes.

Main technical parameters
The Distance From Center Line Of Horizontal Spindle To Working Table:	345Mm
Distance Of Working Table Above Ground:	718Mm
Rotation Speed Of Output Shaf(Adjustable):	80Rpm;120Rpm;
Diameter Ofblade Shaff:	φ45
Range Offin Outside Diameter:	Φ18-Φ70Mm
Minimal Fin Root Diameter:	Φ15Mm
Range Offin Pitch：	0-8.00Mm
Range Of Finned Tube Length:	0-15000Mm
Main Motor Power(Optional):	11KW
Cooling Pump Model	DB-25,120W
Machine Weight:	1415Kg
External Dimension(LxWxH):	21507601430

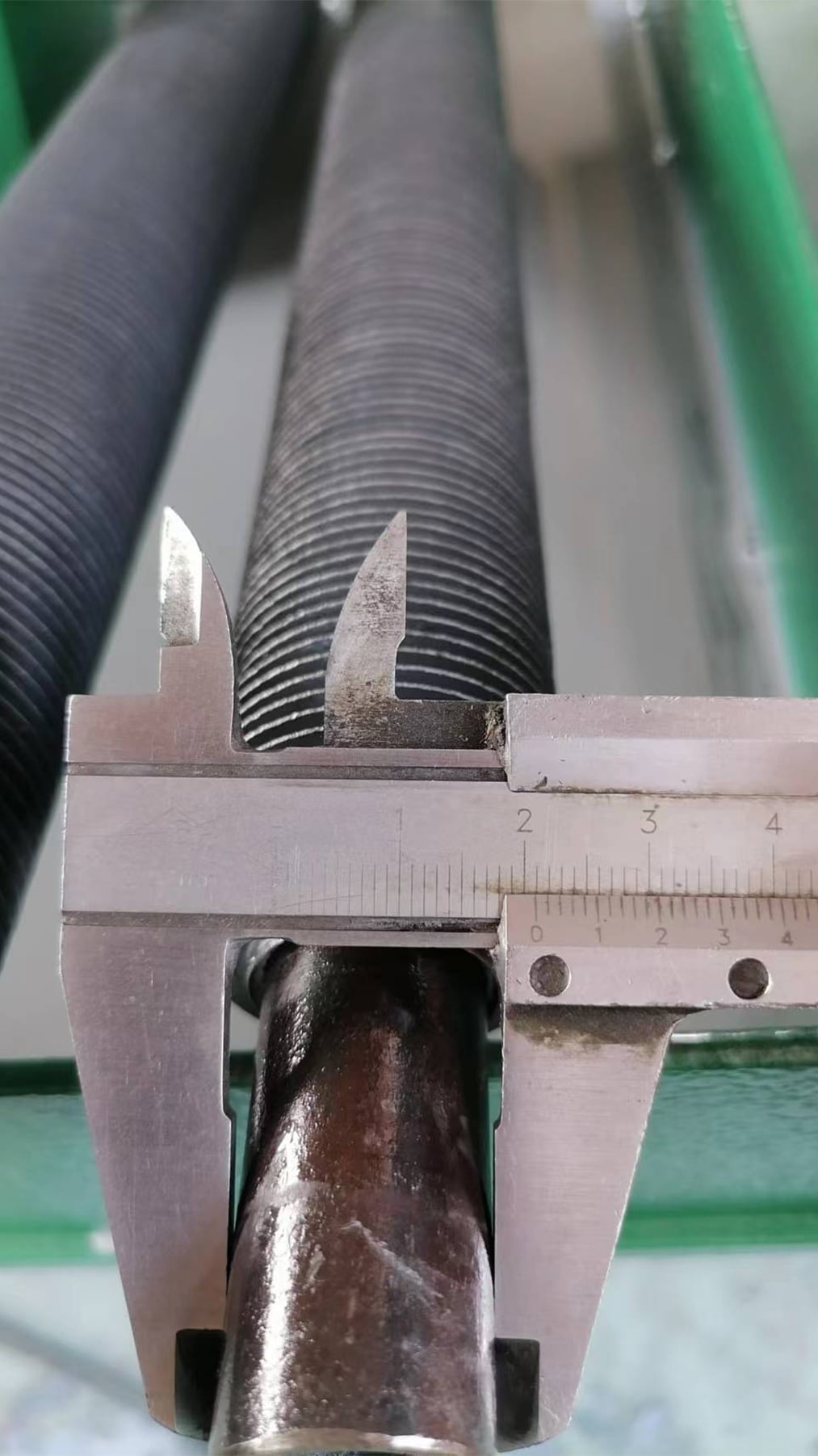

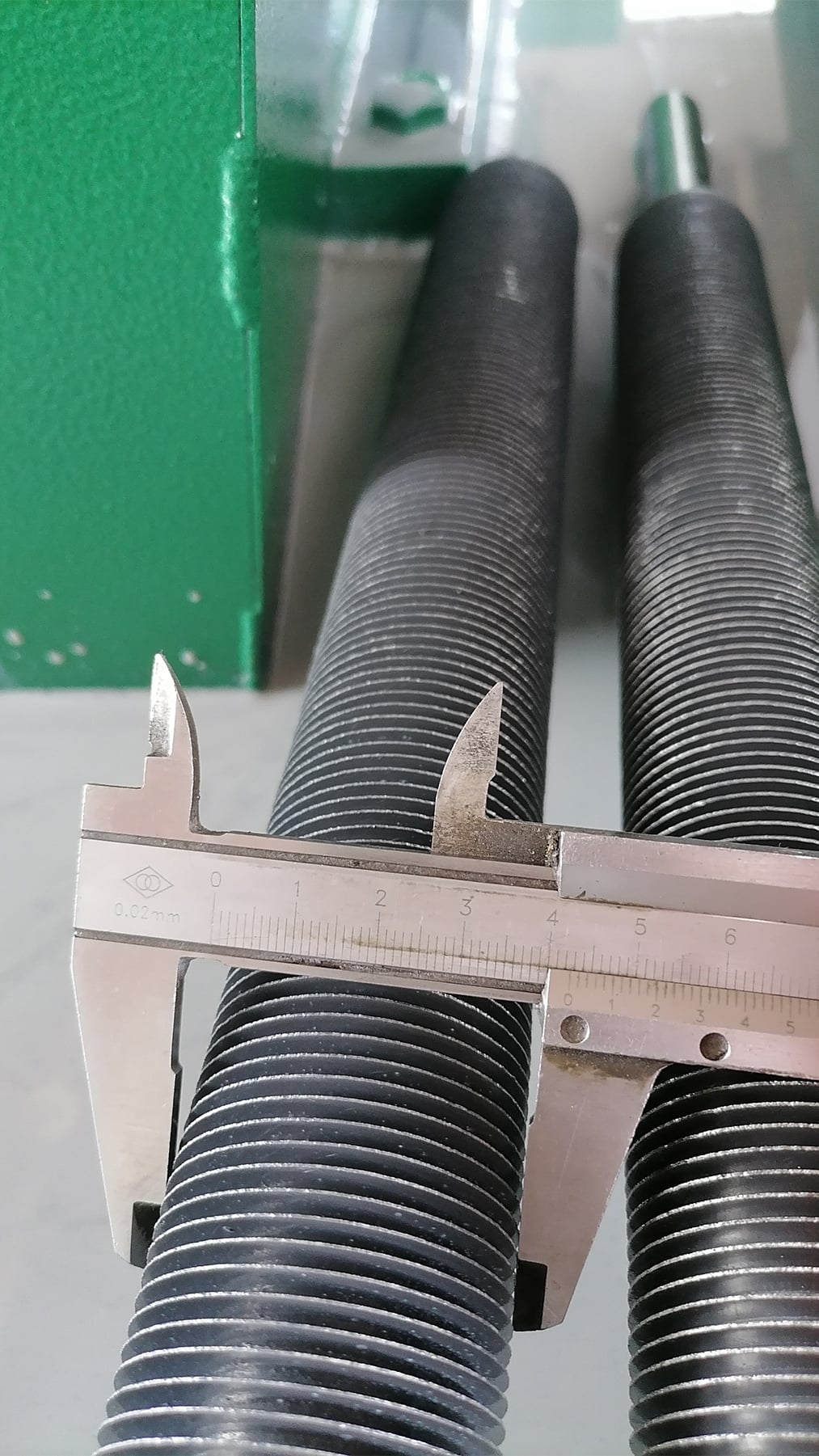

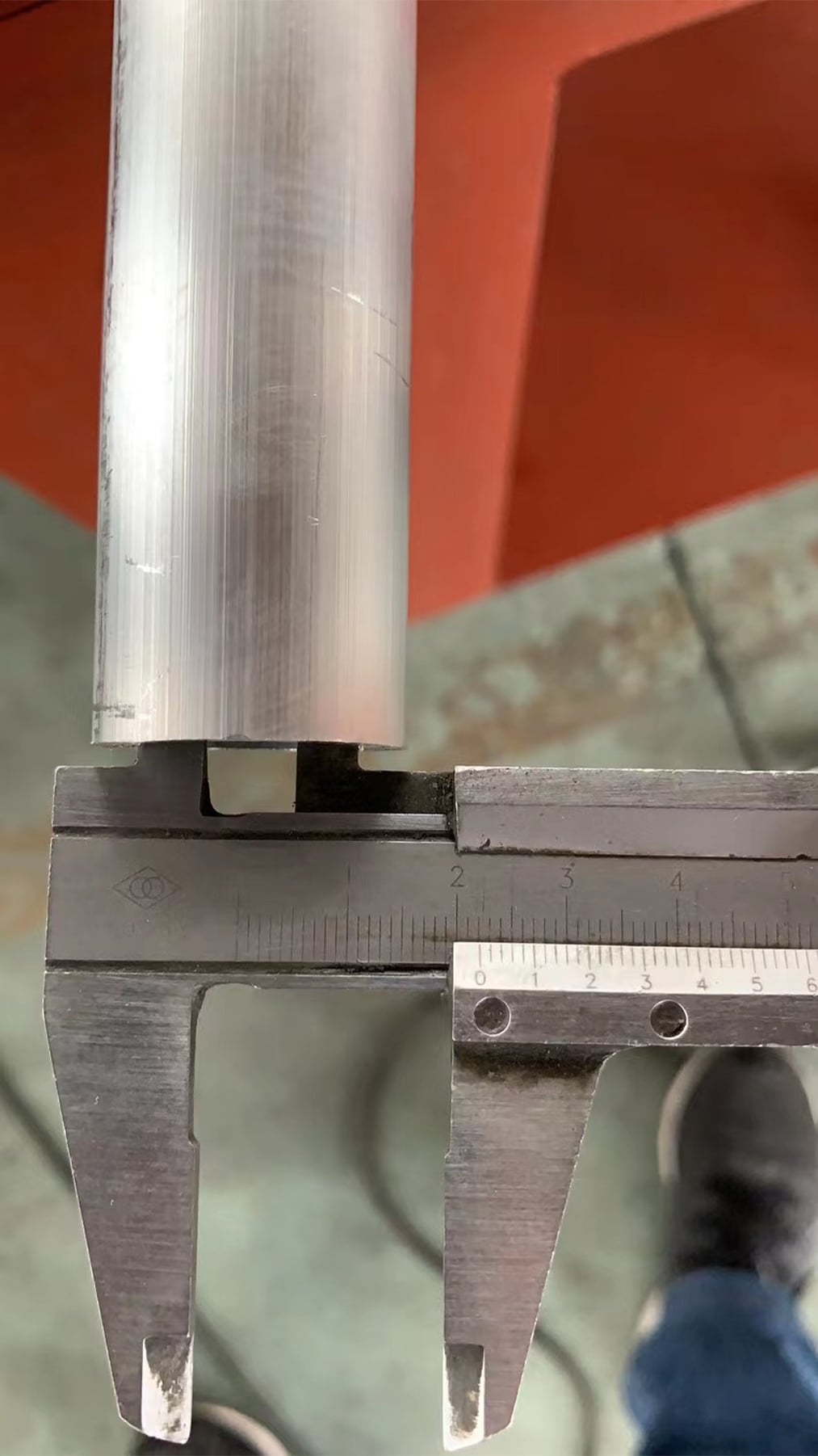

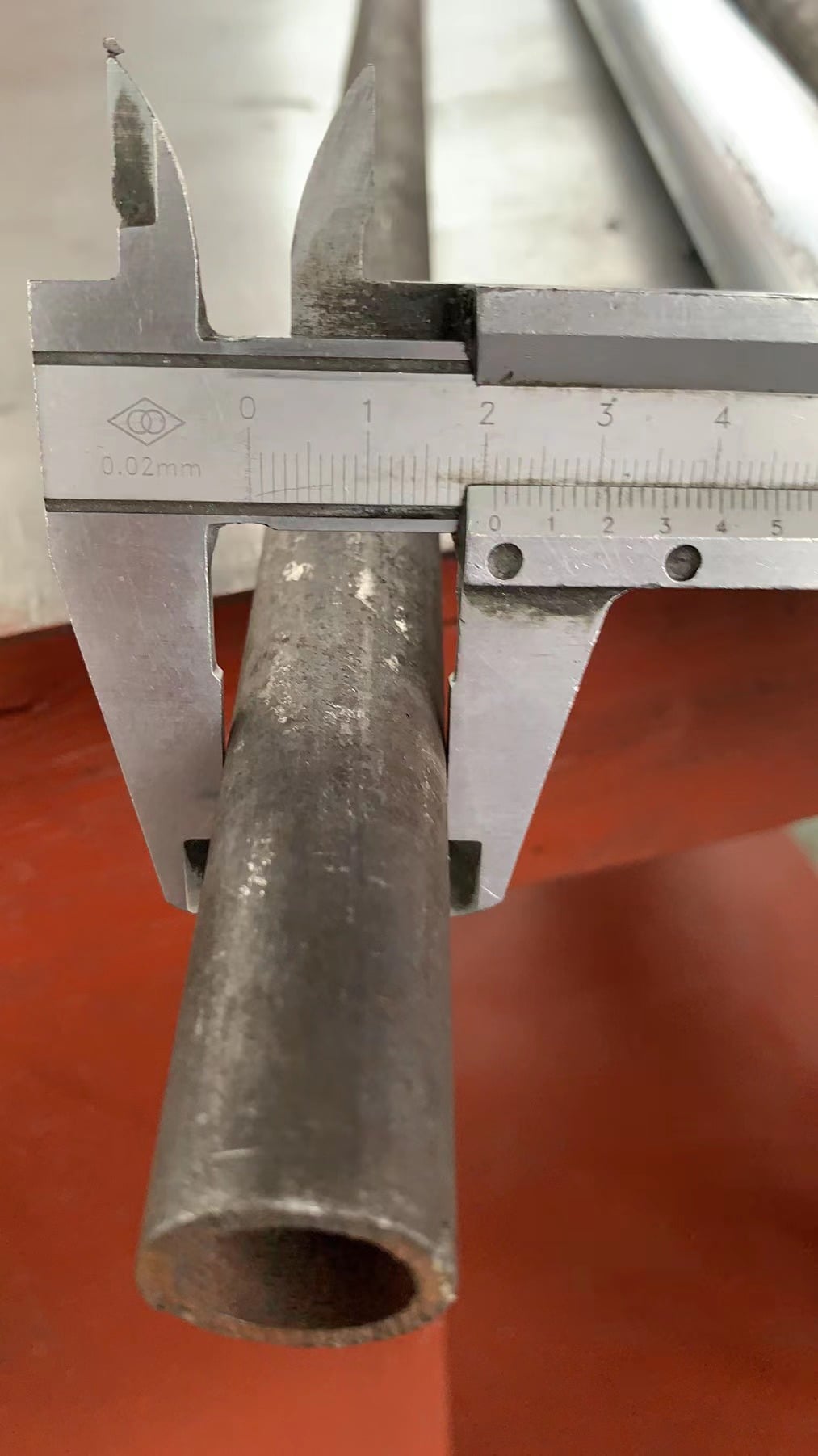

Sample testing

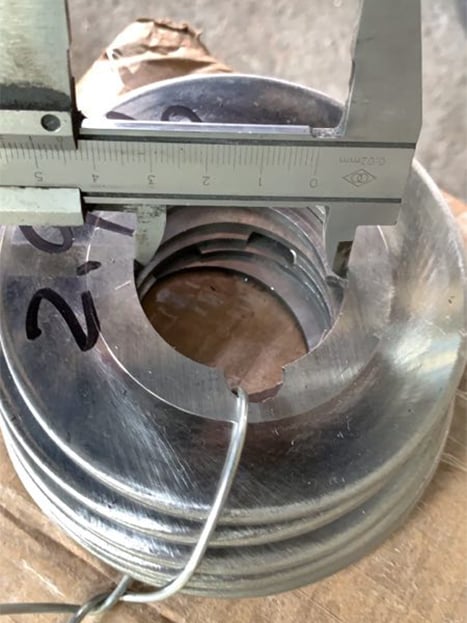

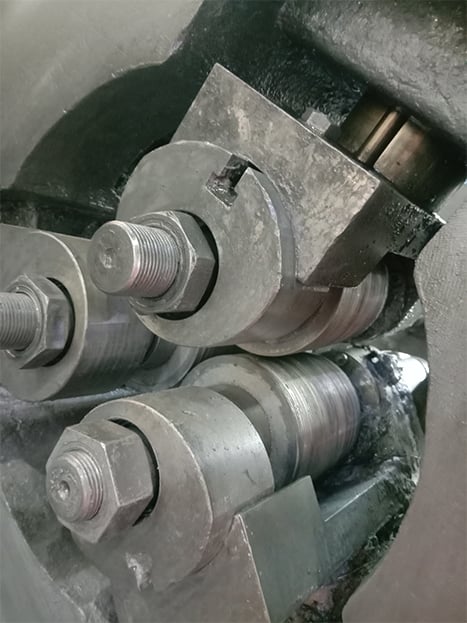

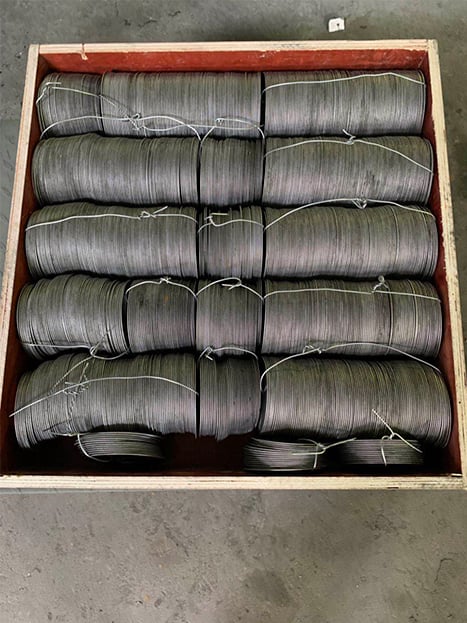

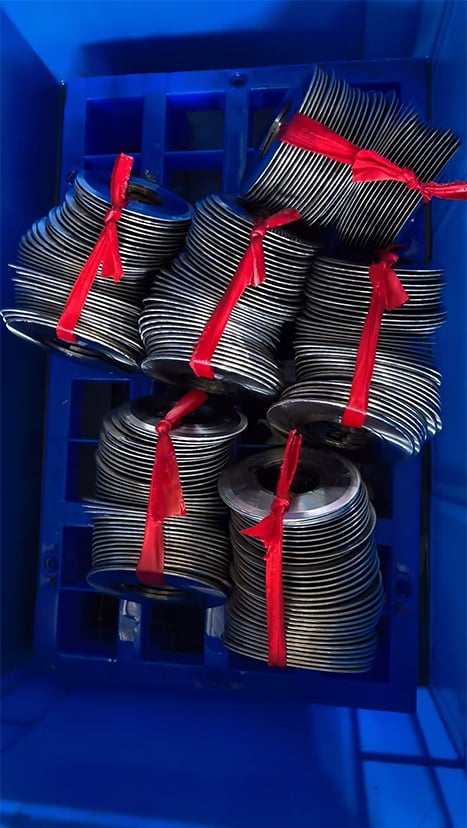

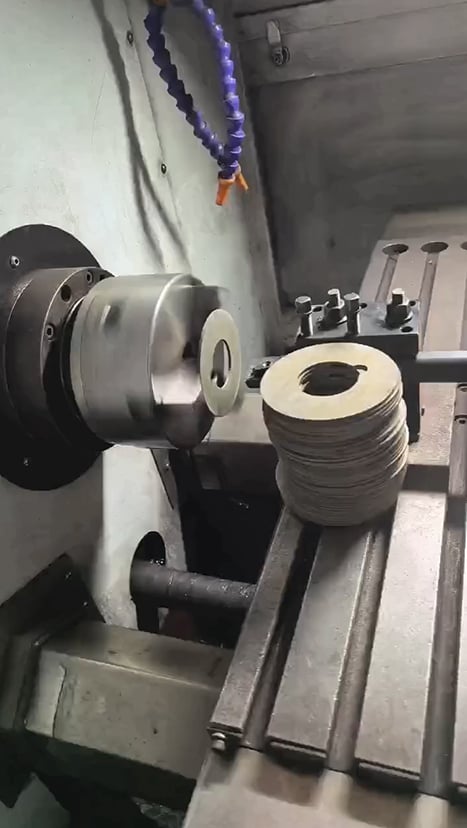

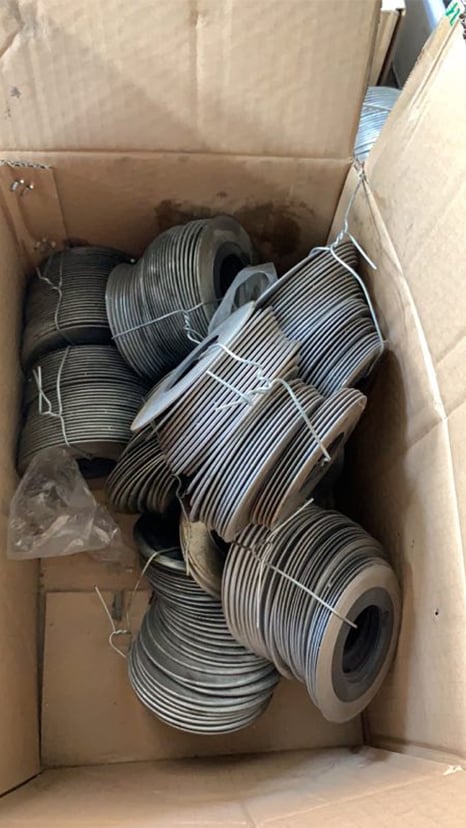

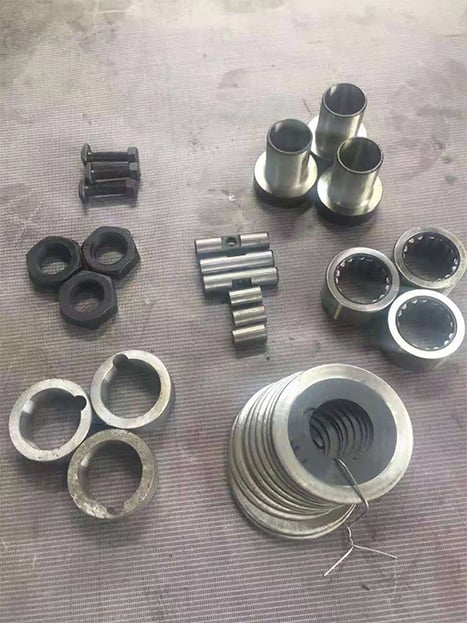

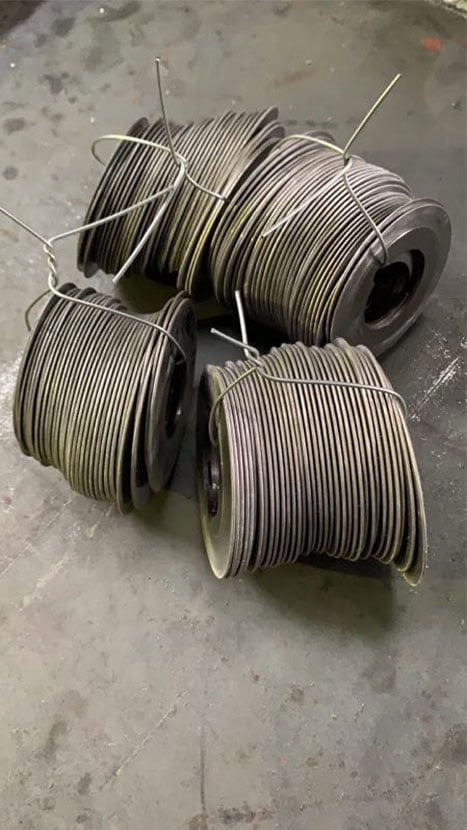

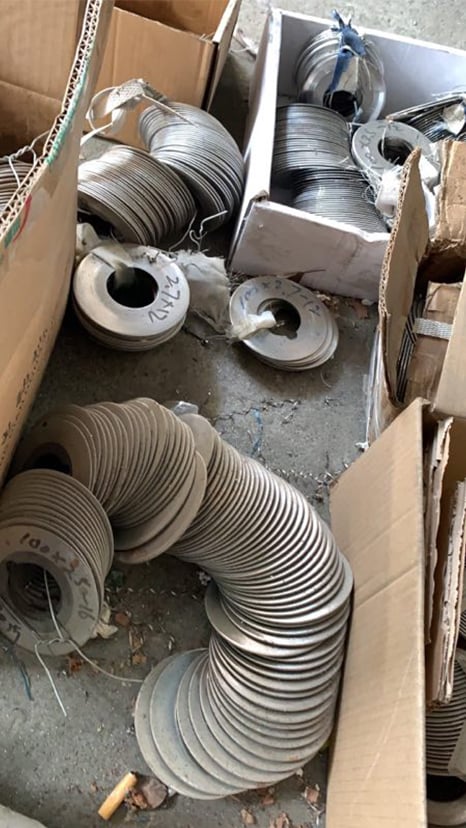

Machine blades

(I) Cutter shaft Φ30, base tube Φ8-Φ12, rolled fins Φ18-Φ30

(II) Cutter shaft Φ45, base tube Φ12-Φ32, rolled fins Φ20-Φ64

(III) Cutter shaft Φ45, base tube Φ16-Φ51, rolled fins Φ32-Φ70

(IV) Cutter shaft Φ60, base tube Φ25-Φ57, rolled fins Φ57-Φ85

Suitable for rolling steel, pure aluminum, copper, copper-aluminum, steel-aluminum composite finned tubes, as well as corrugated tubes, threaded tubes, and spiral tubes. Rolling range: base tube Φ8-Φ57, fin outer diameter Φ18-Φ85
