Extruded Fin Tube

Tube Material:Carbon steel tube;Stainless steel tube;Alloy tube;Copper tube
Tube OD:10-51mm
Tube Thk:1.65-3.0mm
Fin Material:Aluminum, Copper
Fin Thk:0.3-1.2mm
Fin Pitch:2.0-15.0mm
Fin Height:5-16mm

Extruded Fin Tube

Product Description

Bang win Thermal’s Extruded finned tube is a processing form of finned tube, which is rolled from aluminum tube and steel tube or stainless steel tube (copper tube). The aluminum tube is tightly sleeved on the base tube and extruded by a machine to form fins. The base of the fins is closely attached to the outer wall of the tube. It is a wear-resistant, new-type and high-efficiency thermal material. Breakage, melting, etc. will occur. Stainless steel fins are finned tubes processed by advanced production equipment.

微信图片 20180117212800
微信图片 20180117212809
微信图片 20180117212814

What is Extruded Finned Tube?

An extruded finned tube is a type of heat exchanger tube that has fins formed on its surface. Aluminum finned tubes are typically manufactured by a process called extrusion, where the fins are pressed or rolled into grooves on the outer surface of the tube. This creates a secure and strong bond between the tube and the fins. This design also allows for easy cleaning and maintenance of the heat exchanger. The fins increase the surface area of the tube, allowing for enhanced heat transfer between the fluid inside the tube and the fluid outside, which also provide good corrosion protection to the base tube.

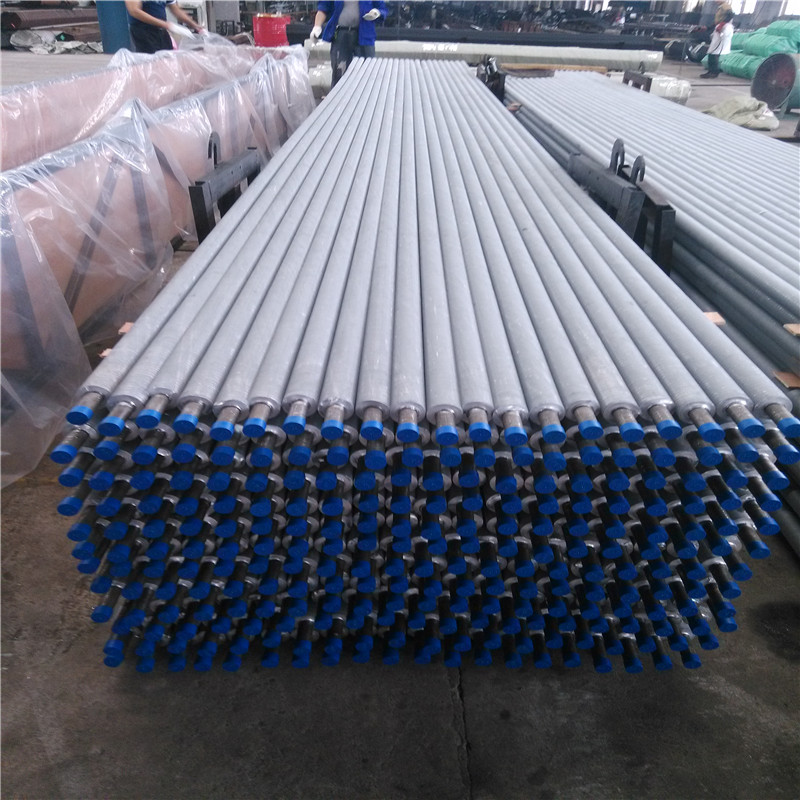

Stock

114e0ae831312fc
004
{"sha1":"6f7c19dada2ce26a55f2dbf96f00237538353ba6","ext":"jpg"}
19(3)

Detection

screenshot 2026 01 20 113755 856
screenshot 2026 01 20 113736 024
screenshot 2026 01 20 113804 935

Product Showcase
