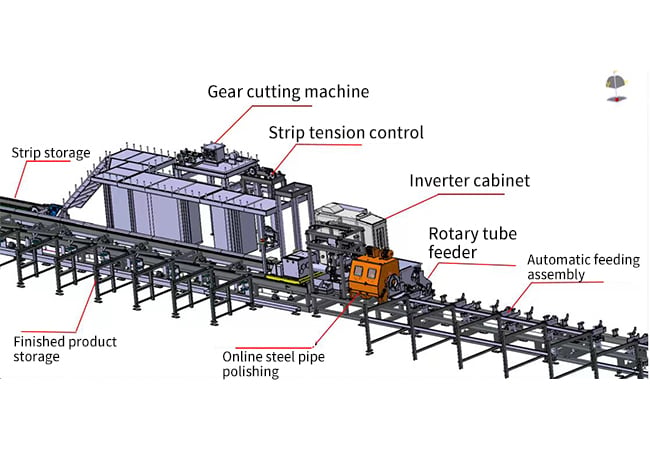

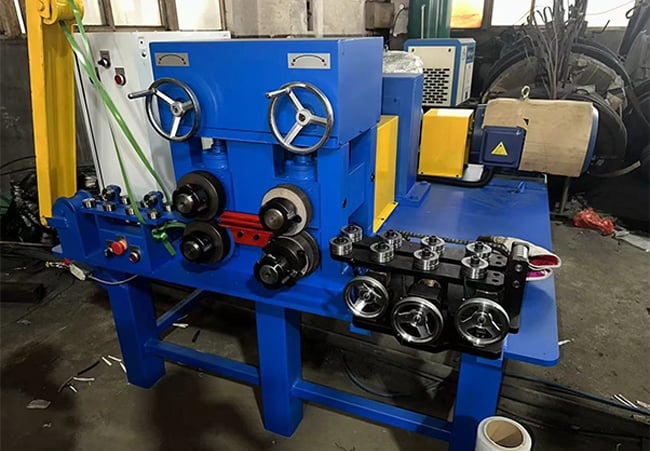

High-frequency welding finned tube machine
- Double-inverter-link, PLC control
- PLC control, HMI operation, full automatic, automatic loading & clamping, automatic feeding, welding and unloading
- Pure red copper welding torch, smallest distance between torch and conductor, smallest current loss
- Rail on the machine is made by 40Cr, high quality
- Pneumatic clamping tubes, pneumatic chuck
- Equipped with emergency stop and anti-bumping device

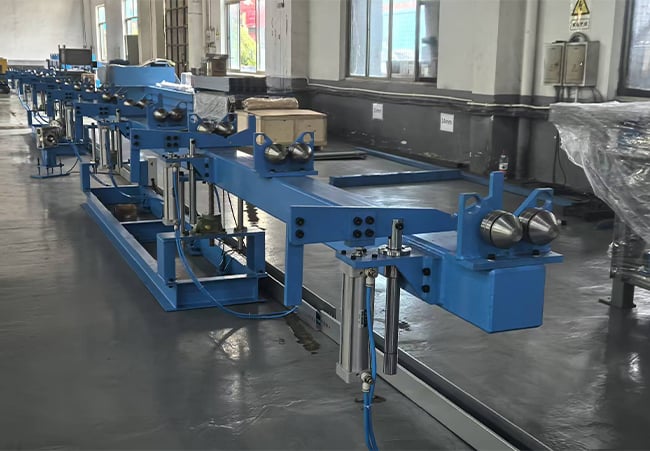

High-frequency welding finned tube machine
Product Description
A high-frequency welding finned tube machine is specialized equipment used to manufacture high-frequency welded finned tubes. It continuously welds metal fins onto the surface of a base tube using high-frequency resistance welding technology, creating a strong and reliable fin-to-tube bond.
The machine feeds the steel tube and fin strip simultaneously. High-frequency electric current heats the contact area, and pressure forms a solid metallurgical weld without filler material. This ensures high heat transfer efficiency, excellent welding strength, and stable production quality.
What is High-frequency welding finned tube machine?
- Automatic Tube Fin Machine is a piece of industrial equipment designed to automate the process of attaching finned tubes to a base tube, creating a heat exchange surface. These machines are commonly used in various industries for applications that require efficient heat transfer, such as air conditioning, refrigeration, heat exchangers, and industrial heating and cooling systems.
- The Bimetal Tube Finned Machine is a piece of equipment used in various industrial applications, particularly in the manufacturing of heat exchangers and air-cooling systems. This machine is designed to attach finned tubes to a base tube, creating a bimetallic structure. The purpose of this is to enhance the heat transfer capabilities of the tube, making it more efficient in transferring heat from one fluid to another, such as in refrigeration, HVAC systems, and various industrial processes.
Suitable finned tube length | Max. 10m |
Suitable base tube OD | Φ20-Φ159mm |
Suitable fin material | Carbon steel, alloy steel, stainless steel |
Suitable fin pitch | 3.5-30mm, adjustable |
Steel band width | 10-30mm |
Steel band thickness | 0.8-3.0mm |
Main spindle speed | 0-350rpm |
Welding speed | 30m/min (band linear feeding speed) |
Spiral pitch tolerance | ±0.1mm |
Non-welded terminal length on tube | Less than 20mm |
Equipped high frequency power | 300kVA |
Machine overall dimension | About 16 x 3.5 x 1.7m (L x W x H) |
Machine weight | About 14 tons |

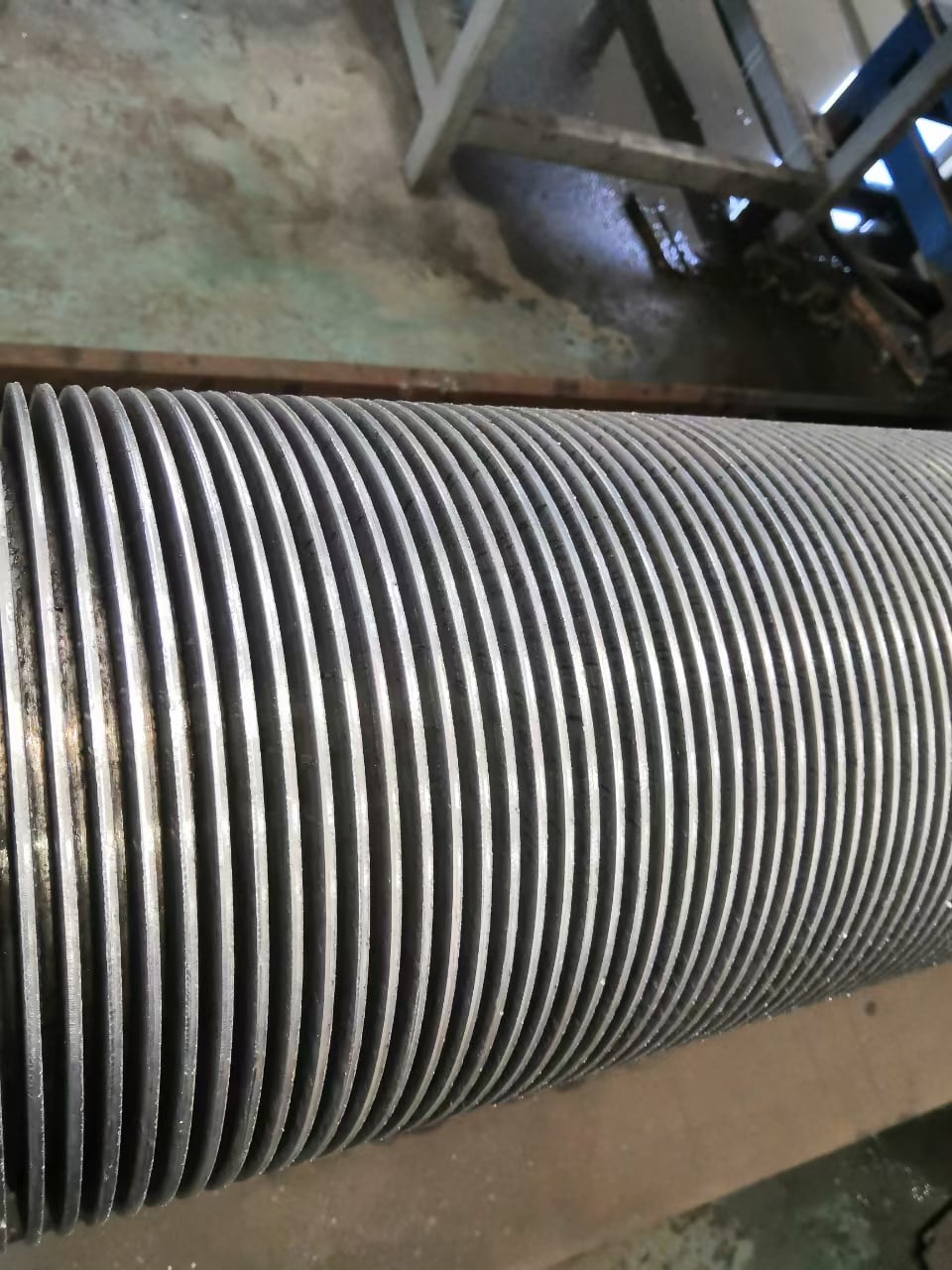

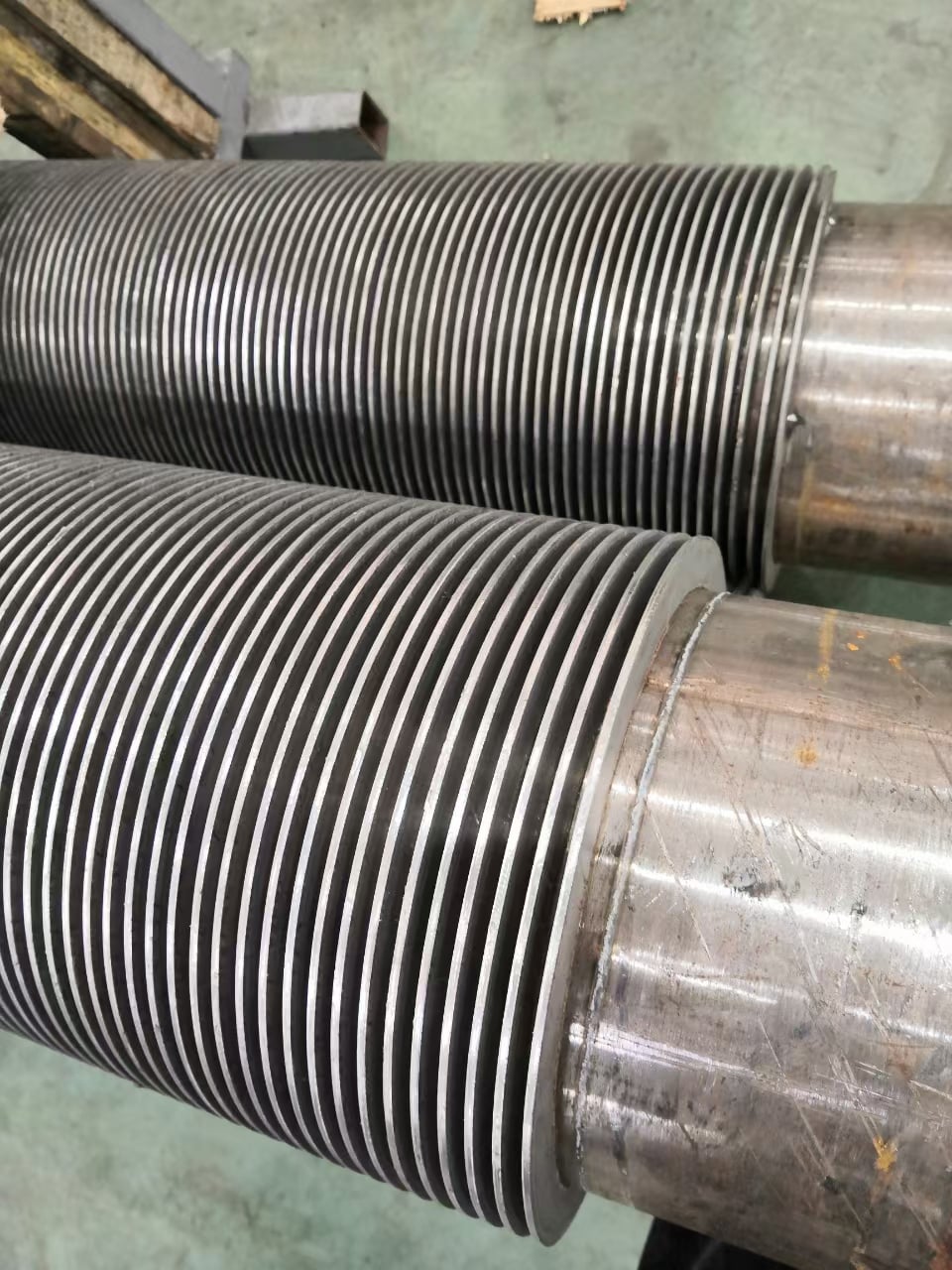

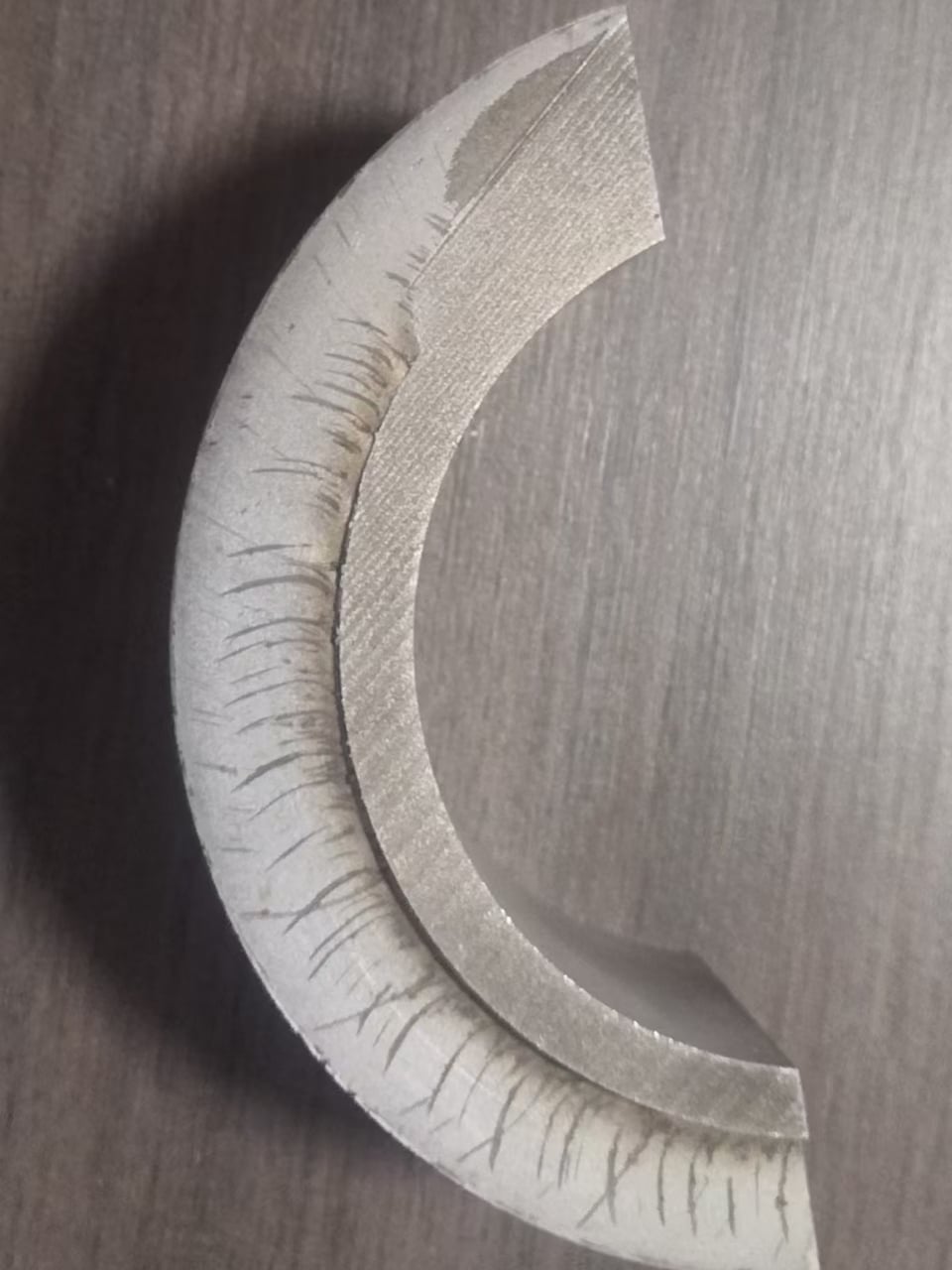

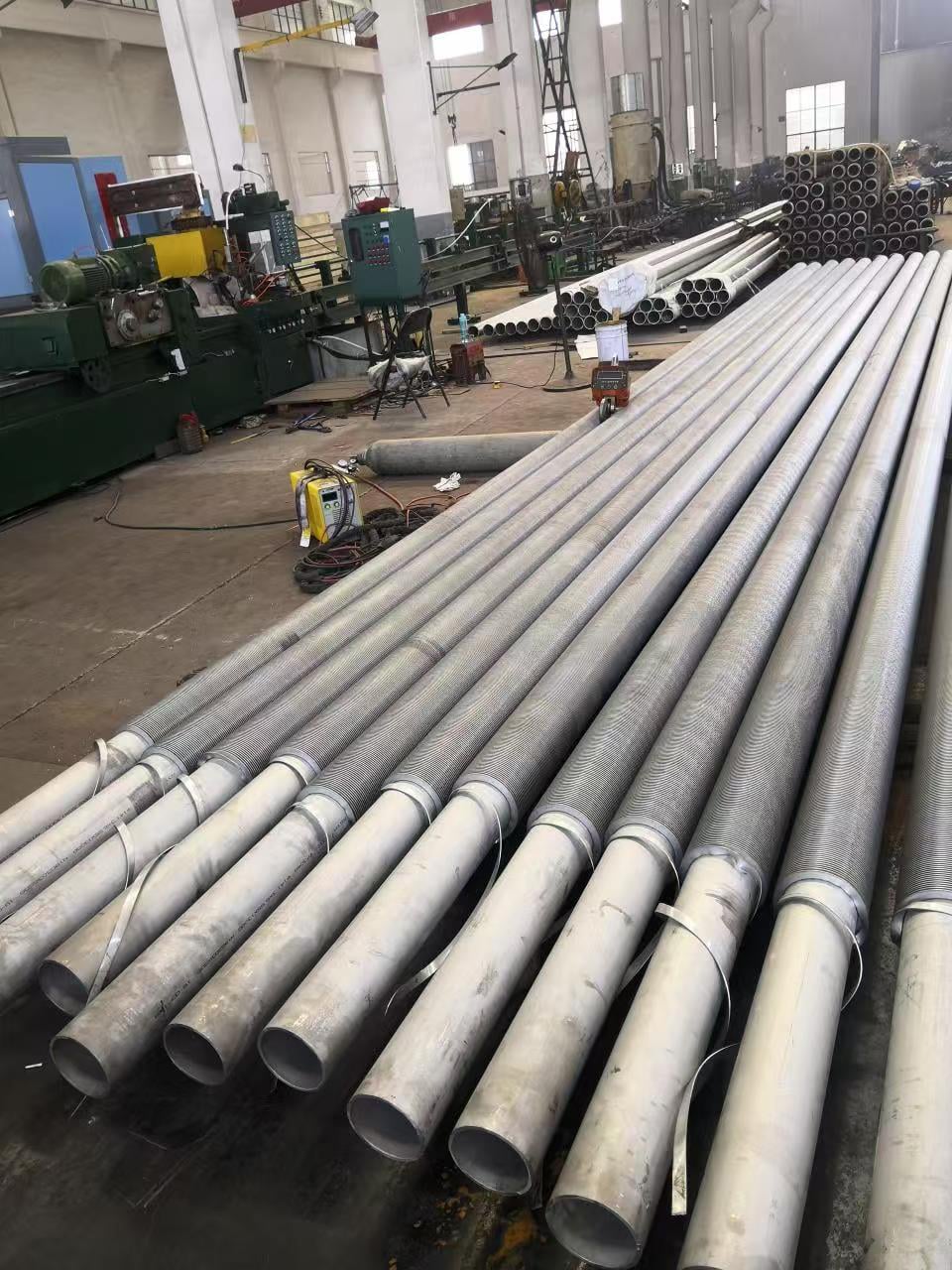

Finished Product Display

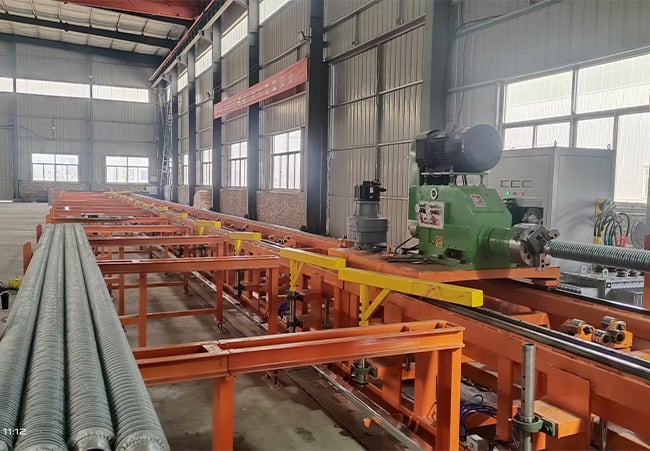

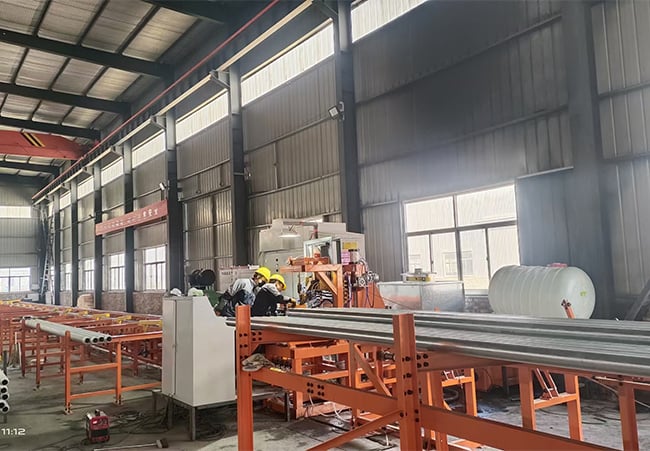

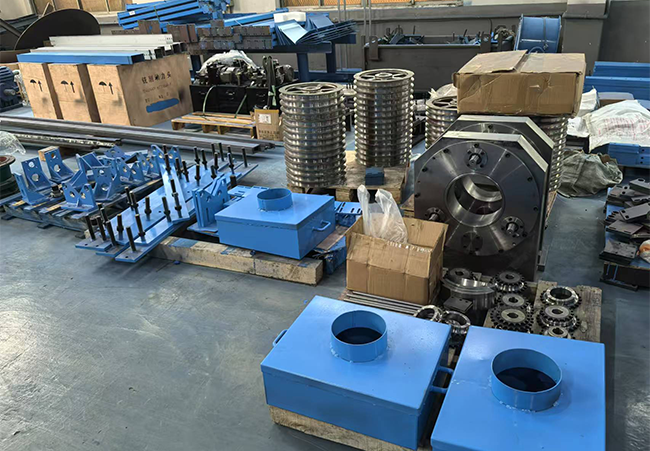

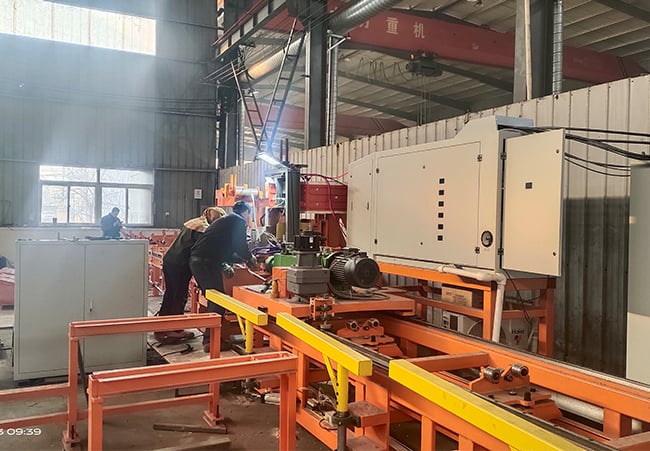

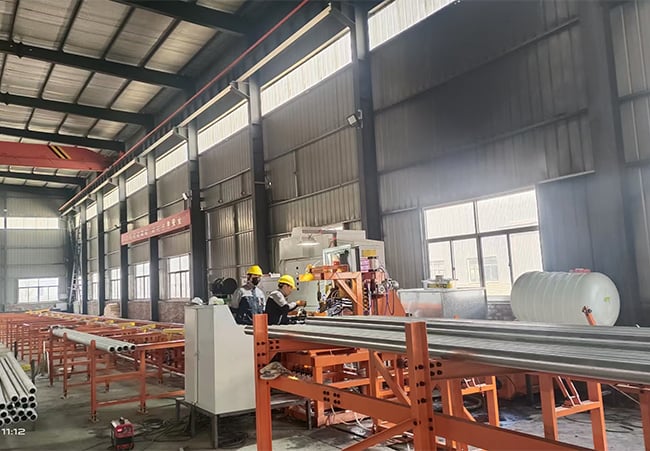

Factory Showcase

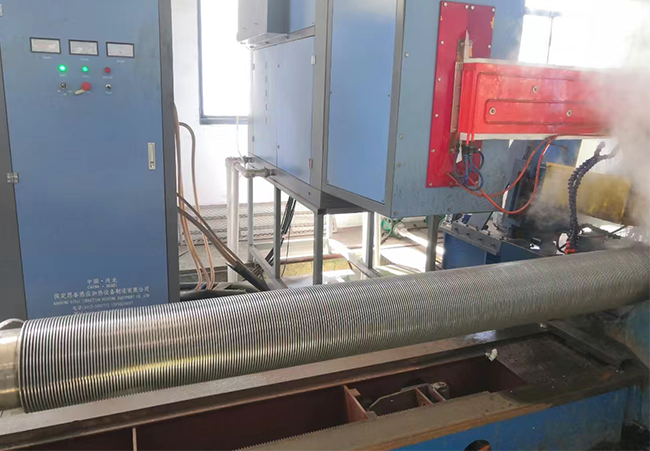

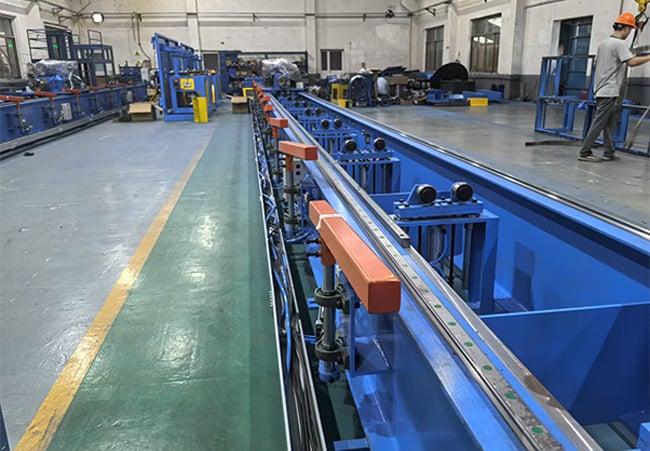

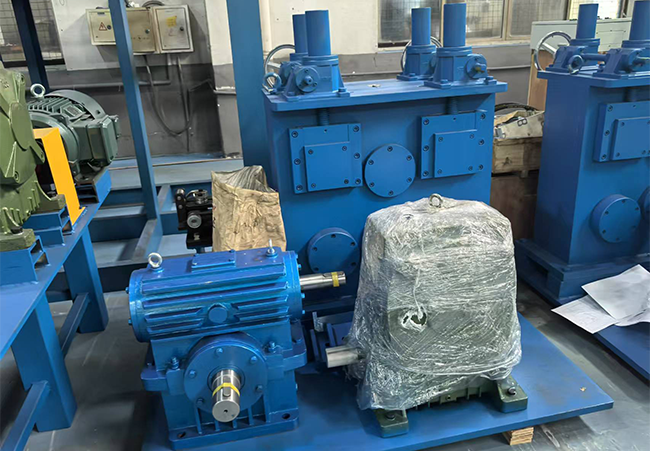

Product Showcase
