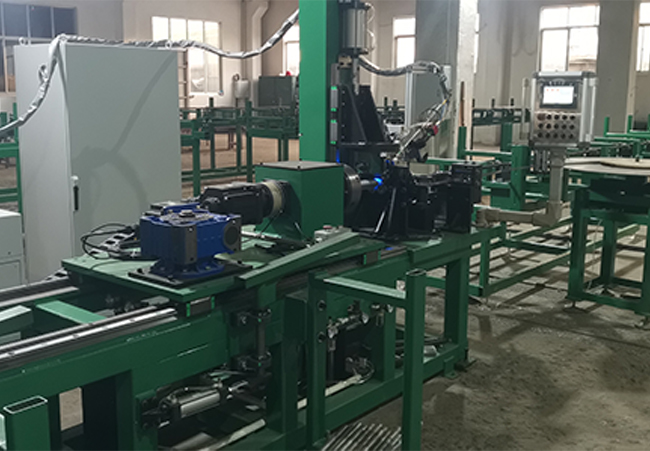

Laser welding fin tube machine
Stronger Bonding: Welded fin tubes have better mechanical strength and thermal performance than embedded or L/G/H type fin tubes.
Minimal Heat Distortion: Laser produces a narrow, focused weld zone, reducing material warping.
Suitable for High-Pressure Systems: Ideal for boilers, heat exchangers, and superheaters.
Long Service Life: Corrosion-resistant and fatigue-resistant.
Laser welding fin tube machine
Product Description
A Laser Welding Fin Tube Machine is a specialized industrial machine designed to manufacture high-performance finned tubes by welding fins onto tubes using a laser welding process. This method offers precise, strong, and clean welds, making it ideal for applications requiring high thermal conductivity and durability, such as power plants, petrochemical, HVAC, and refrigeration industries.
| Main Unit Dimensions (L×W×H) | 15000×1520×2330mm |

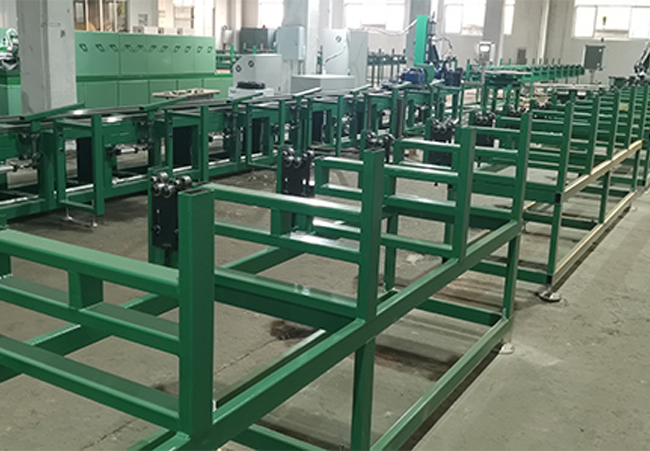

| Upper Pipe Rack Dimensions (L×W×H) | 3550×950×1150mm=3 sections |
| Spindle Speed | 20~285 rpm |
| Accuracy | 0.1mm |
| Flare Spacing | 2~30mm |
| Flare Height | 5~30mm (depending on the base pipe) |
| Flare Thickness | 0.4~1.0mm |
| Flare Material | Carbon steel, stainless steel |
| Base Tube Outer Diameter | 15~104mm |
| Base Tube Wall Thickness | 1.0 and above |
| Base Tube Material | Carbon steel, stainless steel |
| Servo Motor | 7KW+3KW (Mitsubishi) |
| PLC | Mitsubishi |
| Touch Screen | Weintek |
| Laser | 3KW (MAX) |
| Welding Head | raytools |
| Total Power | 20KW |
| Voltage | 3-phase 380V+N+PE |
What is Laser welding fin tube machine?
A laser welding fin tube machine is advanced equipment used to manufacture laser-welded finned tubes by precisely welding metal fins onto the surface of a base tube using high-energy laser beams. This technology creates a clean, accurate, and strong weld with minimal heat input.
Compared with high-frequency welding, laser welding produces narrow weld seams, low distortion, and excellent fin-to-tube bonding, making it ideal for high-precision and high-performance heat exchanger applications.

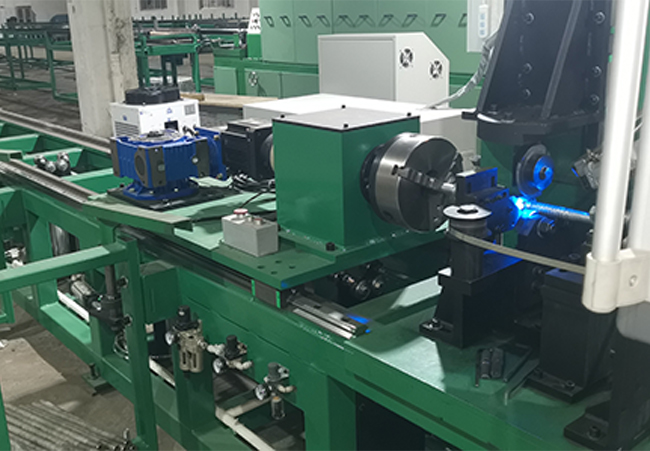

Product Showcase
Laser welding fin tube machine
